Automatic Transformer Coil Winding Machine with 7.5KW Motor, 0 ~ 90 RPM Speed, and PLC Control System

Automatic Lay Wire High Voltage Transformer Coil Winding Machine

Description of transformer coil winding machine ZPX1400

Transformer winding machine is an essential piece of industrial equipment designed to coil conductive wire, such as copper wire or aluminum wire. This precise process is fundamental to manufacturing reliable and efficient transformers and other similar products. With a wire guide driven by a servo motor, the transformer coil winding machine can laying the wire automatically when winding the wire. The transformer winding machine adopts a 7.5KW motor to provide enough torque to wind copper or aluminium wire. The winding speed can be adjusted through one potentiometer on the board. With a foot pedal, the rotating direction of the winding shaft can be switched when needing. With a control system based on PLC, the transformer coil winding machine can be operated easily.

Main Components of transformer coil winding machine ZPX1400

1.  Main frame

2.  Winding unit

3.  Automatic wire laying unit

4.  Insulation decoiler

5.  Electronic control system

6.  Pneumatic system

Technical Parameters of transformer coil winding machine ZPX1400

Typical standard specifications of coil winding machine ZPX1400 are shown below, however the transformer coil winding machine can also be manufactured as requested.

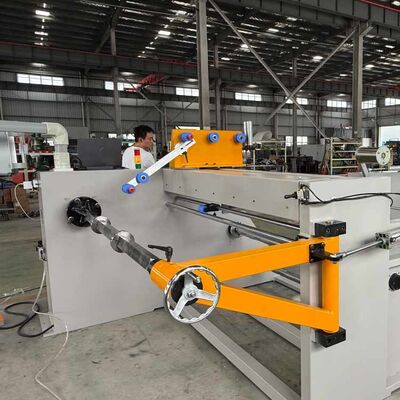

Fig 1: Transformer coil winding machine ZPX1400's front view

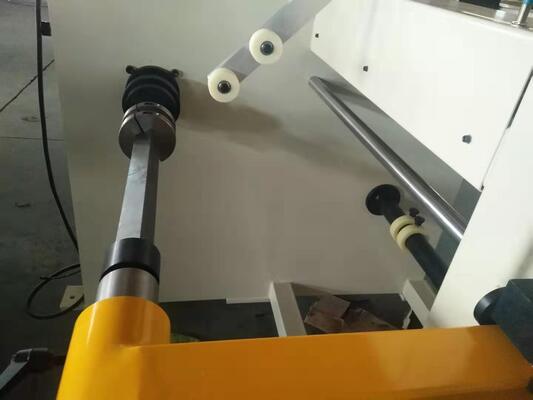

Fig 2: Transformer coil winding machine ZPX1400's triangle support
