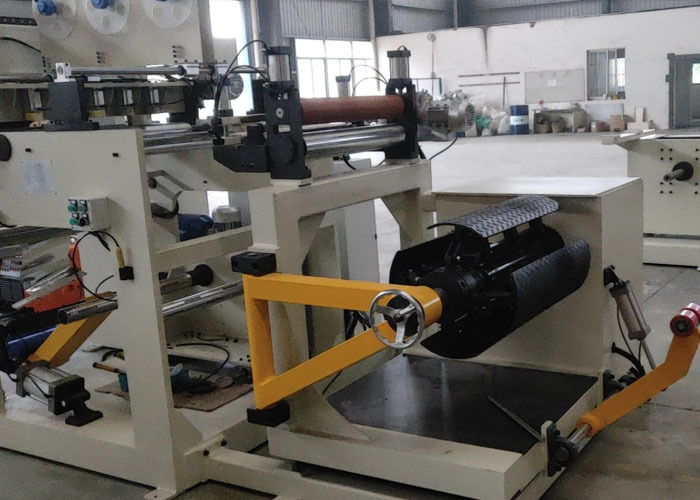

Automatic Foil Film Winder Transformer Foil Winding Machine

Low Voltage Transformer Foil  Winding Machine Foil Sheet Winder

Description of transformer foil winding machine BRJ700

Transformer foil winding machine BRJ700 is a special winder equipment. This kind of foil winding machine is mainly used to wind both copper foil and aluminium foil, which can be make transformer foil winding machine. The transformer foil winding machine is provided with one foil decoiler and two insulation decoiler, which makes the transformer foil winding machine handle one layer of foil conductor and one or two layers of insulation paper. The transformer foil winding machine is also provided with one TIG welding unit, which can weld foil with bus bar together. With control system based on PLC and HMI, it is very easy to operate the foil winding machine.

Quick detail of transformer foil winding machine BRJ700

• Winding foil with maximum width 700mm
• Winding both copper foil and aluminium foil
• Conductor foil with ID 500mm and OD 1000mm maximum
• TIG welding unit
• Pressing roller
• Customized color

Technical parameters of transformer foil winding machine BRJ700

Typical standard specifications of transformer foil winding machine BRJ700 are shown below and the transformer foil winding machine can also be manufactured as requested.
