Hydraulic Transformer Core Stacking Table with 3000kg Load Capacity and Adjustable Column Design

1 Instellen
MOQ
USD7000~8000
Prijs
Hydraulic Transformer Core Stacking Table with 3000kg Load Capacity and Adjustable Column Design
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Naam: Transformatorkern stapeltafel
Gebruik: het stapelen van siliciumstaalplaat
Tafelgrootte: 1500x1200 mm
Werkhoogte: 900 mm
Maximale laadcapaciteit: 3000KG
Kantelen: hydraulisch aangedreven
Machinekleur: Zoals gevraagd
Garantieperiode: 12 maanden
Markeren:

Hydraulic transformer core stacking table

,

Transformer core tilting table FZT-3T

,

Core stacking table with hydraulic system
Basis informatie
Plaats van herkomst: China
Merknaam: STT
Certificering: CE
Modelnummer: Fzt-3T
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Zeewaardige verpakking
Levertijd: 35 dagen
Betalingscondities: T/T,L/C
Levering vermogen: 100 sets per jaar
Productomschrijving

Hydraulic Transformer Core Stacking & Tilting Table (FZT-3T)

Product Overview

The FZT-3T Automatic Hydraulic Stacking Table is a premium workshop solution specifically engineered for assembling and handling transformer iron cores.

With a robust 3,000 kg (3 Tons) load capacity, this platform allows operators to stack core laminations horizontally with ease. Once stacking is complete, the integrated hydraulic system smoothly tilts the entire assembly up to 90°, allowing overhead cranes or lifting equipment to safely and effortlessly remove the finished core. This equipment significantly reduces labor intensity, protects core geometry, and enhances assembly efficiency.



Key Features & Advantages

  • Smooth Hydraulic Tilting: Powered by a heavy-duty hydraulic station, the table transitions seamlessly from 0° to 90° without jerking, ensuring the integrity of the stacked core.

  • Stepless Speed Regulation: Features an adjustable tilting speed (up to 90°/min), allowing operators to precisely control the turnover process based on the weight and size of the core.

  • Flexible Column Design: The distance between supporting columns is fully adjustable, enabling the table to accommodate various transformer core dimensions.

  • Safe & User-Friendly: Designed with an intuitive control panel and high-precision linear guides for ultra-stable, reliable, and safe daily operation.

System Configuration & Main Components

The FZT-3T core assembly line comprises 4 high-quality modules:


  1. Heavy-Duty Main Frame: Rigid welded steel structure designed to eliminate deflection under maximum loads.

  2. Premium Hydraulic Station: Delivers stable, leak-free power for the 90-degree tilting mechanism.

  3. High-Precision Linear Guide: Ensures smooth, parallel movement during setup and operation.

  4. Centralized Control Panel: Simple, ergonomic interface for safe and effortless operation.

Technical Specifications

Note: The parameters listed below represent the standard FZT-3T configuration. We offer fully customizable table sizes, weight capacities, and paint colors to align with your specific plant requirements.

Parameter Item Technical Specification (FZT-3T)
Max. Loading Capacity 3,000 kg (3 Tons)
Table Dimension (L x W) 1600 × 1400 mm
Table Working Height 1000 mm
Max. Stacking Thickness 900 mm
Tilting Mechanism Hydraulic Driven
Tilting Speed 90°/min (Stepless Speed Regulation)
Column Distance Adjustable
Main Motor Power 1.5 kW
Equipment Color Optional / Customized to your factory standard
Warranty Period 12 Months

Hydraulic Transformer Core Stacking Table with 3000kg Load Capacity and Adjustable Column Design 0

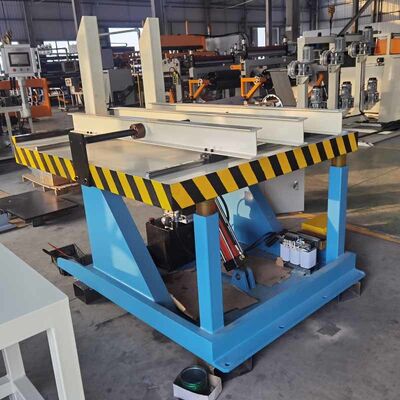

Fig 1: Transformer core stacking table FZT-3T's full view


Hydraulic Transformer Core Stacking Table with 3000kg Load Capacity and Adjustable Column Design 1

Fig 2: Transformer core stacking table FZT-3T's hand held controller


Hydraulic Transformer Core Stacking Table with 3000kg Load Capacity and Adjustable Column Design 2Hydraulic Transformer Core Stacking Table with 3000kg Load Capacity and Adjustable Column Design 3Hydraulic Transformer Core Stacking Table with 3000kg Load Capacity and Adjustable Column Design 4Hydraulic Transformer Core Stacking Table with 3000kg Load Capacity and Adjustable Column Design 5Hydraulic Transformer Core Stacking Table with 3000kg Load Capacity and Adjustable Column Design 6Hydraulic Transformer Core Stacking Table with 3000kg Load Capacity and Adjustable Column Design 7
