HJX400-LLB Step Lap Transformer Core Cutting Machine with 0.02mm Cutting Burring and 120m/min Feeding Speed

1 Instellen
MOQ
Onderhandelbaar
Prijs
HJX400-LLB Step Lap Transformer Core Cutting Machine with 0.02mm Cutting Burring and 120m/min Feeding Speed
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Productnaam: kernsnijmachines
Snijmodus: Snijwerk voor stapelwielen
Snijdikte: 0,23 ~ 0.35mm
Maaibreedte: 40 ~ 400mm
Voedingssnelheid: 0 ~ 120m/min
Garantieperiode: 12 maanden
Scherp afbramen: minder dan 0.02mm
Totaal vermogen: 15 kW
Markeren:

silicon steel transformer core cutting machine

,

step lap transformer core cutter

,

HJX400-LLB transformer core cutting line
Basis informatie
Plaats van herkomst: China
Merknaam: STT
Certificering: CE
Modelnummer: Hjx400-LLB
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Zeewaardige verpakking
Levertijd: 90 dagen
Betalingscondities: T/T,L/C
Levering vermogen: 100 sets per jaar
Productomschrijving
HJX400-LLB Silicon Steel Cut To Length Line Step Lap Transformer Core Cutting Machine
Product Introduction

The HJX400-LLB step lap transformer core cutting machine is a professional and high-precision processing equipment dedicated to silicon steel sheet cutting. It is specially designed for cutting silicon steel strips to fabricate core legs and yokes of transformer cores.

Equipped with a mature PLC control system and HMI human-machine interface, the machine features intuitive operation and intelligent control. It supports step lap cutting technology, enabling precise processing of step-lapped core legs and yokes. With stable performance and simple operation, it meets the high-precision production requirements of transformer cores.

Main Components
  • Hydraulic Decoiler
  • Inclined Feeding Device
  • Punching Unit
  • Shearing Unit
  • Outlet Platform
  • Width Adjusting System
  • Pneumatic System
  • Electrical Control System
Technical Parameters

The following are the standard technical specifications of the HJX400-LLB transformer core cutting machine. Customized production is available to meet diverse customer processing requirements.

Parameter Specification
Double-end Coil Uncoiling Capacity 1000kg per end
Raw Coil Inner Diameter Φ500mm
Max Raw Coil Outer Diameter Φ1200mm
Cutting Types +45°, -45° and triangular cutting
Applicable Cutting Thickness 0.23 ~ 0.35 mm
Cutting Width Range 40 ~ 400 mm
Cutting Length Range 350 ~ 9999 mm
Punching Diameters Φ10mm, Φ14mm, Φ22mm (interchangeable dies)
Max Feeding Speed 120 m/min
Cutting Angle Accuracy ±0.05°
Cutting Length Accuracy ±0.10 mm
Cutting Burr Height ≤0.02 mm
Installed Power 15 kw
Equipment Overview

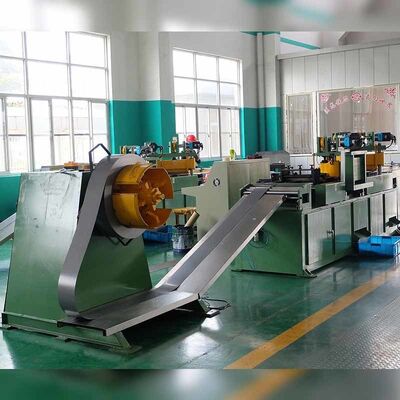

Cut to length line HJX400-LLB side view showing transformer core cutting machine
Fig 1: Cut to length line HJX400-LLB's side view


Cut to length line HJX400-LLB coil dereeler component
Fig 2: Cut to length line HJX400-LLB's coil dereeler


Transformer core cutting machine operational view


Transformer automatic core cutting machine for silicon steel cut to length line


Two cutting two punching power transformer automatic core cutter 11kw


Automatic step lap transformer core cutting machine with two cutting two punching


Transformer core cutting machine detailed component view


Transformer manufacturing equipment operational setup
