ZPX500-3 Three-Head Automatic Coil Winding Machine with PLC Control and 7.5kW Power

1 Instellen
MOQ
Onderhandelbaar
Prijs
ZPX500-3 Three-Head Automatic Coil Winding Machine with PLC Control and 7.5kW Power
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Naam: spiraalwikkelmachine
Gebruik: kronkelende draadspoel
Stroom: 7,5 kW
Wikkelingssnelheid: 0 ~ 80rpm
Geleider: koper of aluminiumdraad
Draadtype: platte of ronde draad
Draadgrootte: 0,3 mm ~ 5,0 mm
Garantie: 12 maanden
Markeren:

Three-head automatic coil winding machine

,

ZPX500-3 coil winding machine

,

Automatic coil winding machine with warranty
Basis informatie
Plaats van herkomst: China
Merknaam: STT
Certificering: CE
Modelnummer: Zpx500-3
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Zeewaardige verpakking
Levertijd: 35 dagen
Betalingscondities: T/T,L/C
Levering vermogen: 100 sets per jaar
Productomschrijving
ZPX500-3 Three-Head Automatic Coil Winding Machine
Product Overview

Model ZPX500-3 coil winding machine is a high-efficiency multi-wire winding equipment engineered for simultaneous production of three coils, with a maximum coil winding height up to 500 mm. This kind of coil winding machine adopts a servo-driven wire guide to achieve neat and automatic wire arrangement. Equipped with a PLC intelligent control system, the coil winding machine completes fully automatic winding of copper or aluminum wires once relevant parameters are preset. A foot switch is configured for convenient operation, which can start/stop the device and switch the spindle rotation direction flexibly. This winding machine delivers soft startup, stable operation, powerful output torque and superior automation performance.

Core Advantages
  • Soft slow startup
  • Steady and smooth operation
  • Complete functional configuration
  • Servo motor driven wire guiding mechanism
  • Intuitive operation, high precision and stable reliability
  • High degree of automation
Technical Specifications

Standard technical parameters of ZPX500-3 are listed as follows. Customized versions are available upon customers’ special requirements.

Center Height 900 mm
Max. Winding Diameter 800 mm
Insulation Paper Unwinder 1 set
Winding Shaft Dimension 40×40×1500 mm
Round Wire Diameter Ø0.3 ~ 5.0 mm
Max. Flat Wire Specification 5×12 mm
Main Winding Motor Power 7.5 kW
Winding Rotation Speed 1 ~ 80 rpm
Control System PLC
Counting Range 0 ~ 9999.99

ZPX500-3 Three-Head Automatic Coil Winding Machine with PLC Control and 7.5kW Power 0

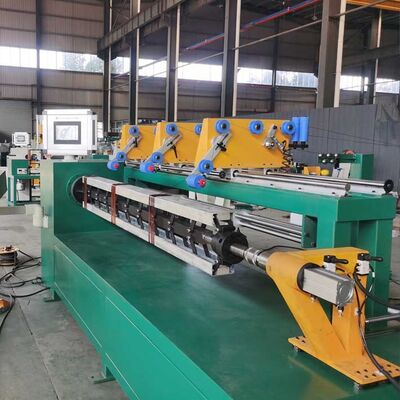

Fig 1: Automatic coil winding machine ZPX500-3's full view

ZPX500-3 Three-Head Automatic Coil Winding Machine with PLC Control and 7.5kW Power 1

Fig 2: Automatic coil winding machine ZPX500-3's coil stand


ZPX500-3 Three-Head Automatic Coil Winding Machine with PLC Control and 7.5kW Power 2ZPX500-3 Three-Head Automatic Coil Winding Machine with PLC Control and 7.5kW Power 3ZPX500-3 Three-Head Automatic Coil Winding Machine with PLC Control and 7.5kW Power 4ZPX500-3 Three-Head Automatic Coil Winding Machine with PLC Control and 7.5kW Power 5ZPX500-3 Three-Head Automatic Coil Winding Machine with PLC Control and 7.5kW Power 6ZPX500-3 Three-Head Automatic Coil Winding Machine with PLC Control and 7.5kW Power 7ZPX500-3 Three-Head Automatic Coil Winding Machine with PLC Control and 7.5kW Power 8
