Automatische verticale spoelwikkelaar Platte draadspoelwikkelmachine Hoge automatisering

1 reeks
MOQ
Onderhandelbaar
Prijs
Automatische verticale spoelwikkelaar Platte draadspoelwikkelmachine Hoge automatisering
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Productnaam: verticale spoelwikkelmachine
Functie: kronkelende platte draadspoel
Draadleider: aluminium of koperen platte draad
Draadgrootte: maximum 4x10mm
Machinekleur: zoals gevraagd
Garantie: 12 maanden
Spoel staan: 1 PC
Weergavemodus: Touch screen
Voeding: AC220V
Draadaanvoerlengte: 0 ~ 100mm
Markeren:

Automatische verticale spoelwikkelaar

,

platte draadspoelwikkelmachine

,

hoge automatisering draadspoelwikkelmachine

Basis informatie
Plaats van herkomst: China
Merknaam: STT
Certificering: CE
Modelnummer: LR200
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Zeewaardige verpakking
Levertijd: 35 dagen
Betalingscondities: T/T, L/C
Levering vermogen: 100 reeksen per jaar
Productomschrijving

High Automation Automatische Verticale Coil Winder Platte Draad Coil Winding Machine





Introductie van automatische spoelwikkelmachine LR200



Automatische platte draadwikkelmachine LR200 is een professionele uitrusting voor het wikkelen van platte koper- of aluminiumdraden om spoelen van verschillende vormen en maten te maken.De verticale spoelwikkelmachine buigt de draad tijdens het wikkelen om te voorkomen dat de voltooide spoel vervormt.Deze afgewerkte spoelen kunnen worden gebruikt in reactoren en andere soortgelijke producten.De verticale spoelwikkelmachine heeft een hoge automatisering, langzaam starten, soepel lopen, hoge automatisering, sterke roterende kracht en eenvoudig te bedienen, enz.





Hoofd onderdelenvan automatische spoelwikkelmachine LR200

  1. Hoofdframe
  2. Touch screen
  3. Elektrische schakelkast
  4. Pneumatisch systeem
  5. Voetpedaal



Belangrijkste parametersvan automatische spoelwikkelmachine LR200



Typische standaardspecificaties van de LR200 worden hieronder weergegeven, maar deze kunnen naar wens eenvoudig worden gewijzigd.

Middenhoogte: 800mm
Max.Rollengte: 200mm
kronkelende macht: 2,5kW
buigende snelheid: 5~500 keer/min.
Max.platte draad: 12.5x3.15mm (doorsnede kleiner dan 40mm2)
Max.Zijlengte: 100mm
Stoke voeren: 100mm
Toonhoogte: verstelbaar
Programmeertype: PLC
Gebruikersomgeving: touch screen



Automatische verticale spoelwikkelaar Platte draadspoelwikkelmachine Hoge automatisering 0

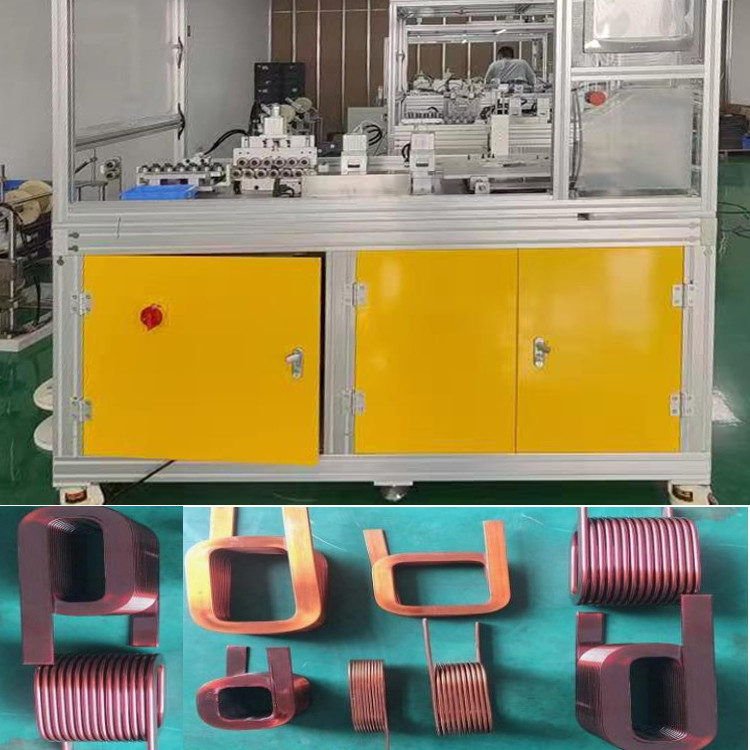

Fig 1: Vooraanzicht van de automatische spoelwikkelmachine LR200



Automatische verticale spoelwikkelaar Platte draadspoelwikkelmachine Hoge automatisering 1

Fig 2: De spoelstandaard van de automatische spoelwikkelmachine LR200



Automatische verticale spoelwikkelaar Platte draadspoelwikkelmachine Hoge automatisering 2Automatische verticale spoelwikkelaar Platte draadspoelwikkelmachine Hoge automatisering 3Automatische verticale spoelwikkelaar Platte draadspoelwikkelmachine Hoge automatisering 4Automatische verticale spoelwikkelaar Platte draadspoelwikkelmachine Hoge automatisering 5Automatische verticale spoelwikkelaar Platte draadspoelwikkelmachine Hoge automatisering 6Automatische verticale spoelwikkelaar Platte draadspoelwikkelmachine Hoge automatisering 7Automatische verticale spoelwikkelaar Platte draadspoelwikkelmachine Hoge automatisering 8Automatische verticale spoelwikkelaar Platte draadspoelwikkelmachine Hoge automatisering 9Automatische verticale spoelwikkelaar Platte draadspoelwikkelmachine Hoge automatisering 10
